Camera IP

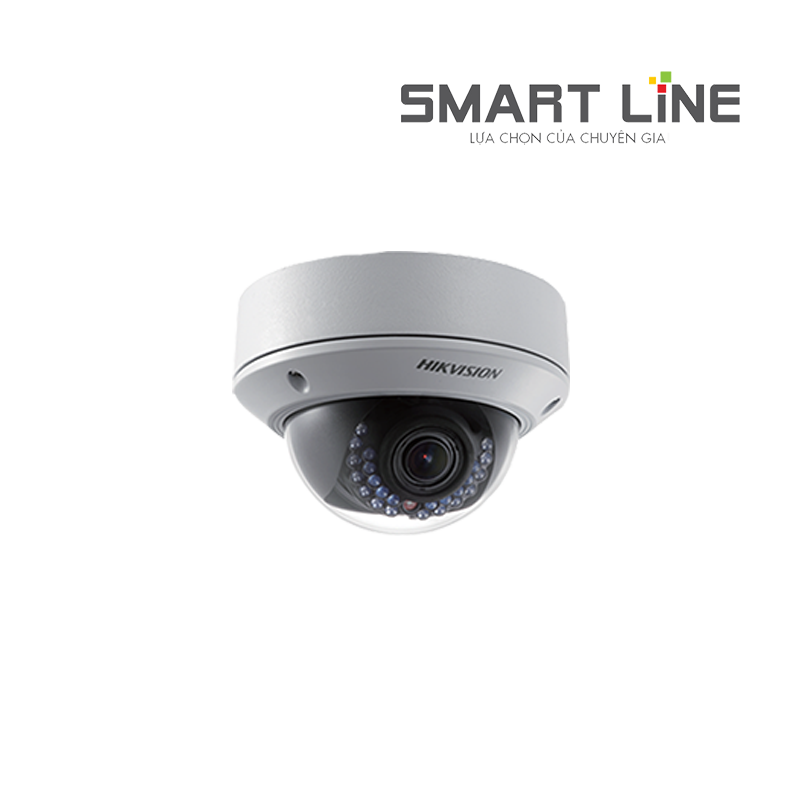

Camera bán cầu thông minh 1.3MP
Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect,
Liên hệ
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3″ Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | 0.01 Lux @ (F1.2, AGC ON), 0 lux with IR 0.014 Lux @ (F1.4, AGC ON), 0 lux with IR |
| Shutter time: | | | 1 s to 1/100,000 s |
| Lens: | | | 2.8-12mm @ F1.4, angle of view: 98.4-30.2° -Z: 2.8-12mm @ F1.4, angle of view: 98.4-30.2° 8-32mm @ F1.4, angle of view: 27.8-9.1° |
| Lens Mount: | | | φ14 |
| Auto Iris: | | | DC drive |
| Adjustment Range: | | | Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Focus: | | | Motorized VF lens(-Z model) |
| Compression Standard | ||
| Video Compression: | | | H.264+/H.264/MPEG4/MJPEG |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | -S: G.711/G.722.1/G.726/MP2L2 |
| Triple Streams: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1280 × 1024 |
| Frame Rate: | | | 50Hz: 25fps (1280 × 1024),25fps (1280 × 960), 50fps (1280 × 720) 60Hz: 30fps (1280 × 1024),30fps (1280 × 960), 60fps (1280 × 720) |
| Third Stream: | | | Independent with Main Stream and Sub Stream, up to 50Hz: 25fps (1280 × 1024) 60Hz: 30fps (1280 × 1024) |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Support |
| HLC: | | | Support |
| Smart Defog: | | | Support |
| EIS: | | | Support |
| ROI: | | | Support |
| Picture Overlay: | | | 128 × 128, BMP 24bit, zone configurable |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection,
Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional) |
| Security: | | | User Authentication, Watermark, IP address filtering, anonymous access, flickerless,
heartbeat, video mask |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| General | ||
| Operating Conditions: | | | -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) -H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on |
| Power Supply: | | | 24 VAC ± 10% / PoE (802.3af) |
| Power Consumption: | | | Max. 12.5W |
| Impact Protection: | | | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof: | | | IP66 |
| IR Range: | | | Approx. 10 to 30 meters |
| Dimensions: | | | Φ 159.8 × 146 mm (Φ 6.29” × 5.75”) |
| Weight: | | | 2100 g (4.62 lbs) |
| NOTE：: | | | * “-S” series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface |
| Chuẩn bảo vệ | |
|---|---|
| Độ phân giải | |
| Hình dáng | |
| Công nghệ kết nối | |
| Nguồn cấp | |
| Nhãn hiệu | |
| Ống kính |
Thông số kỹ thuật
| Chuẩn bảo vệ | IP66 trở xuống (trong nhà) |
| Độ phân giải | 1.3 MP |
| Hình dáng | Bán cầu |
| Công nghệ kết nối | Camera IP |
| Nguồn cấp | 12VDC/24VAC, Poe |
| Nhãn hiệu | Hikvision |
